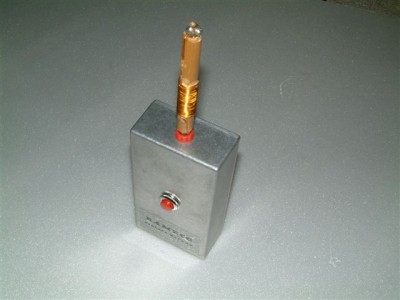

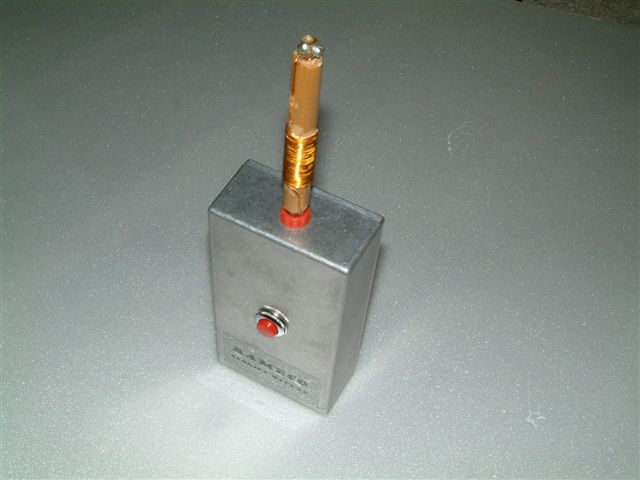

I built this Rameco a few years ago from an early RCM&E article. It was available as a kit but they published the full details of it in the mag. Works surprisingly well. Full range was achieved by plugging a piano wire extension piece into the loading coil.

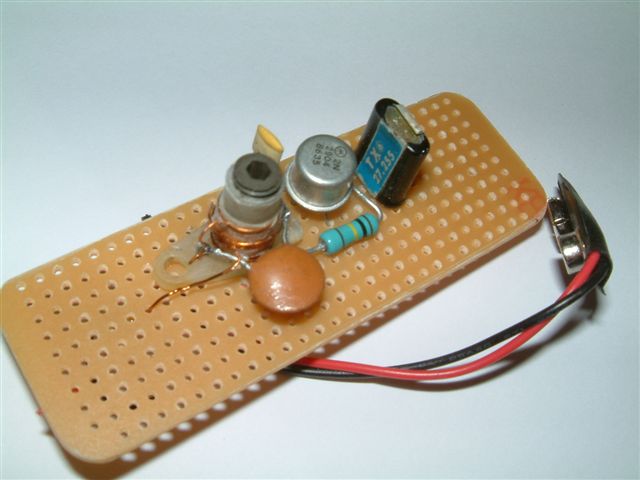

Circuit on Veroboard

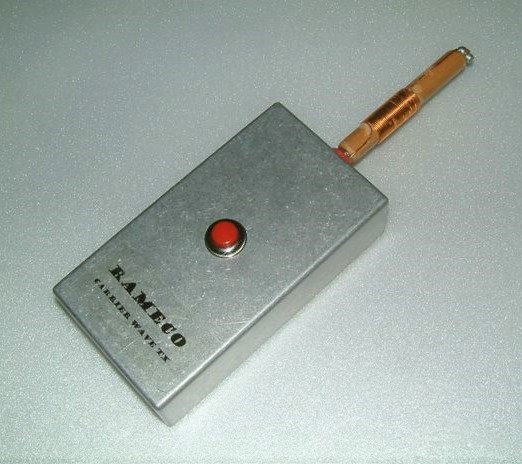

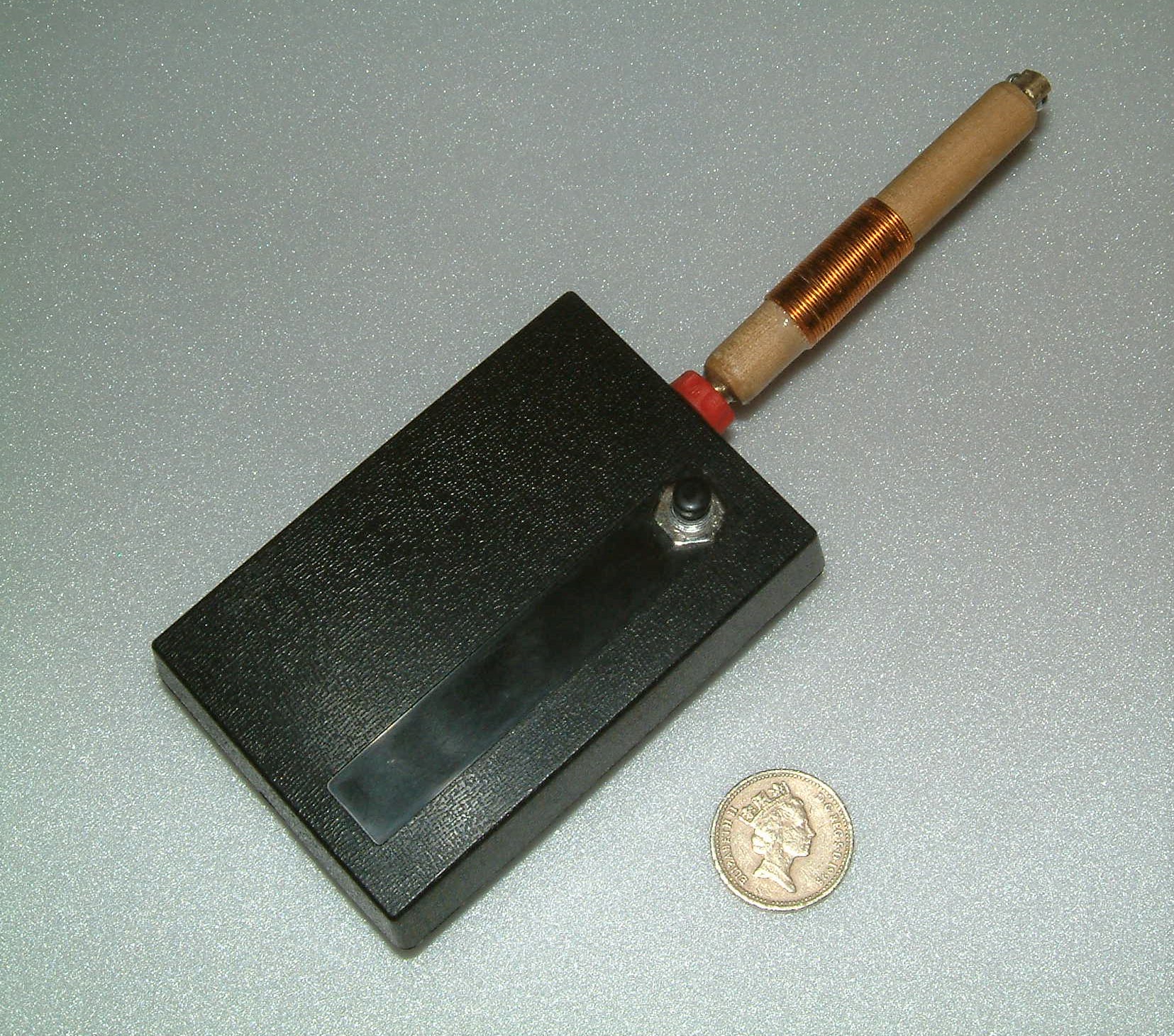

Plastic Case

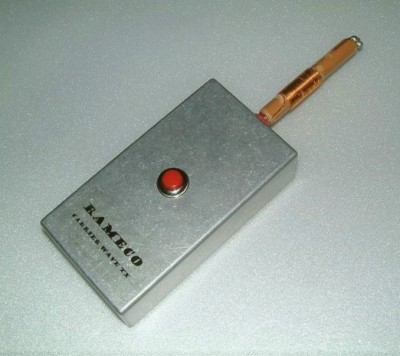

Die-cast case (plastic one initially used affected range)

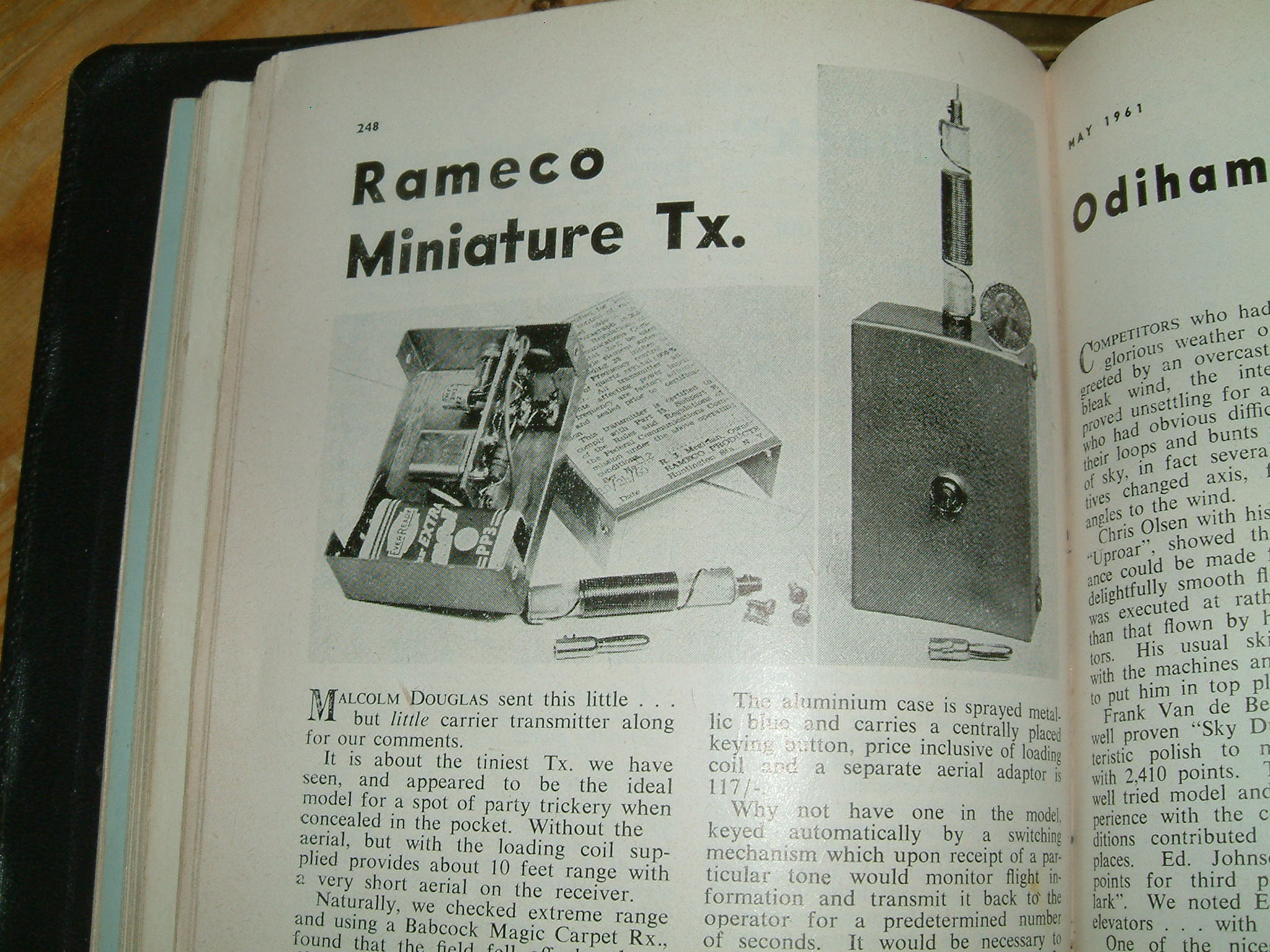

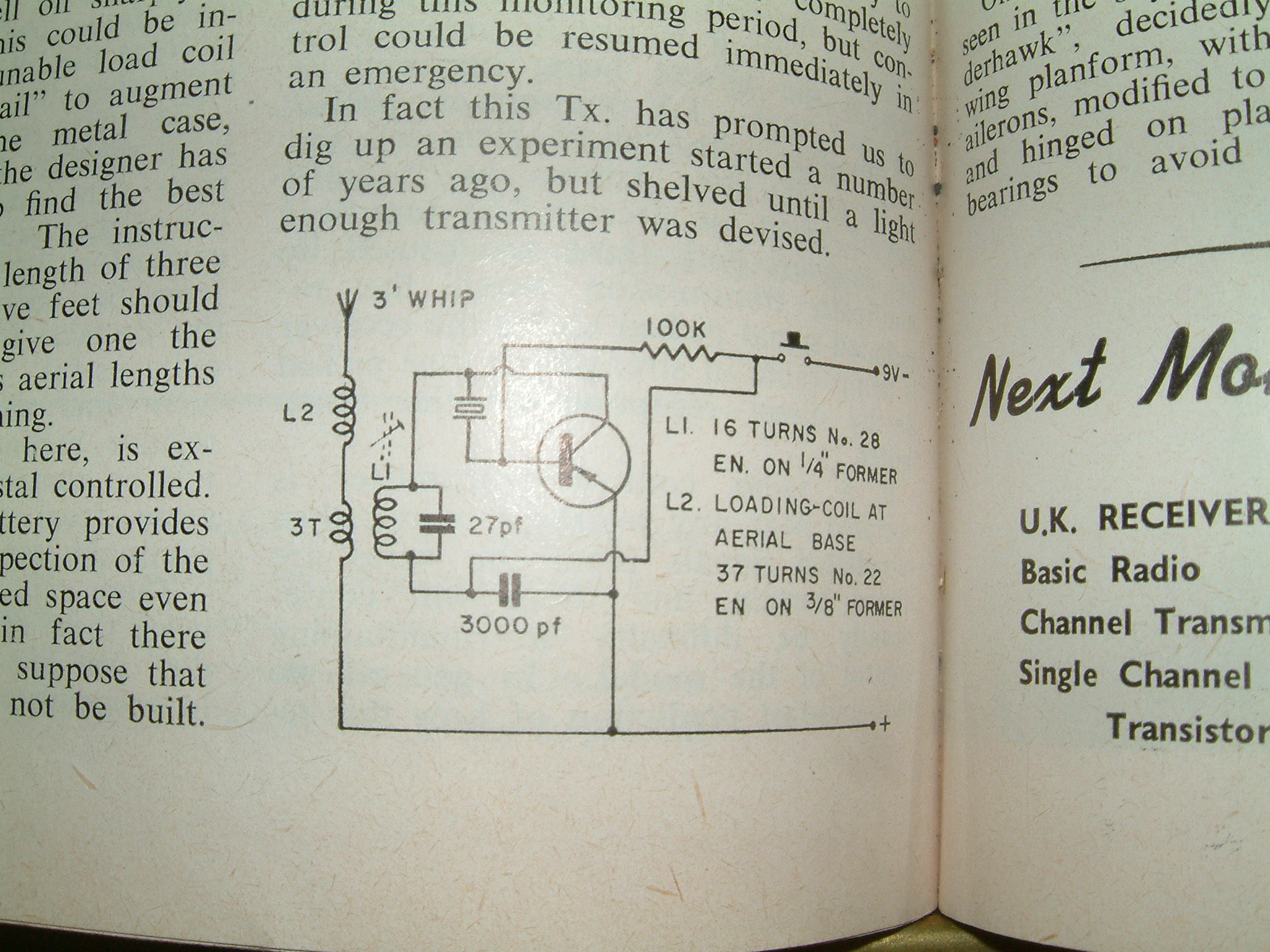

Article
I seem to remember Phil telling me there used to be a challenge among radio hams to see how far you could transmit a morse signal on a single transistor Tx.
Cheers,
Shaun
Single transistor Carrier wave Tx
- Shaun
- Posts: 1232
- Joined: 15 Feb 2018, 21:49
- Location: West Yorkshire
Single transistor Carrier wave Tx
Last edited by Shaun on 04 Mar 2018, 11:04, edited 2 times in total.
-
- Posts: 712
- Joined: 16 Feb 2018, 06:19
- Location: Varberg or Stockholm, Sweden
Re: Single transistor Carrier wave Tx
The CW-QRP people's, low power radio amateurs, are able to cover the full earth with proper propagation with a few 100 mW or less! Personally I used to have regularly contacts with Europe with 0.5 watts on CW and 5 watts on SSB on 20 meters with a full length dipole as antenna.
